WATERPROOF THERMO / HYGROMETER PWT-105
PWT-105 is used for accurate relative air humidity and temperature measurements.
Characteristic features:
- The measurement is made with a high accuracy sensor.
- The meter additionally determines the dew point.
- Minimised size, good accuracy.

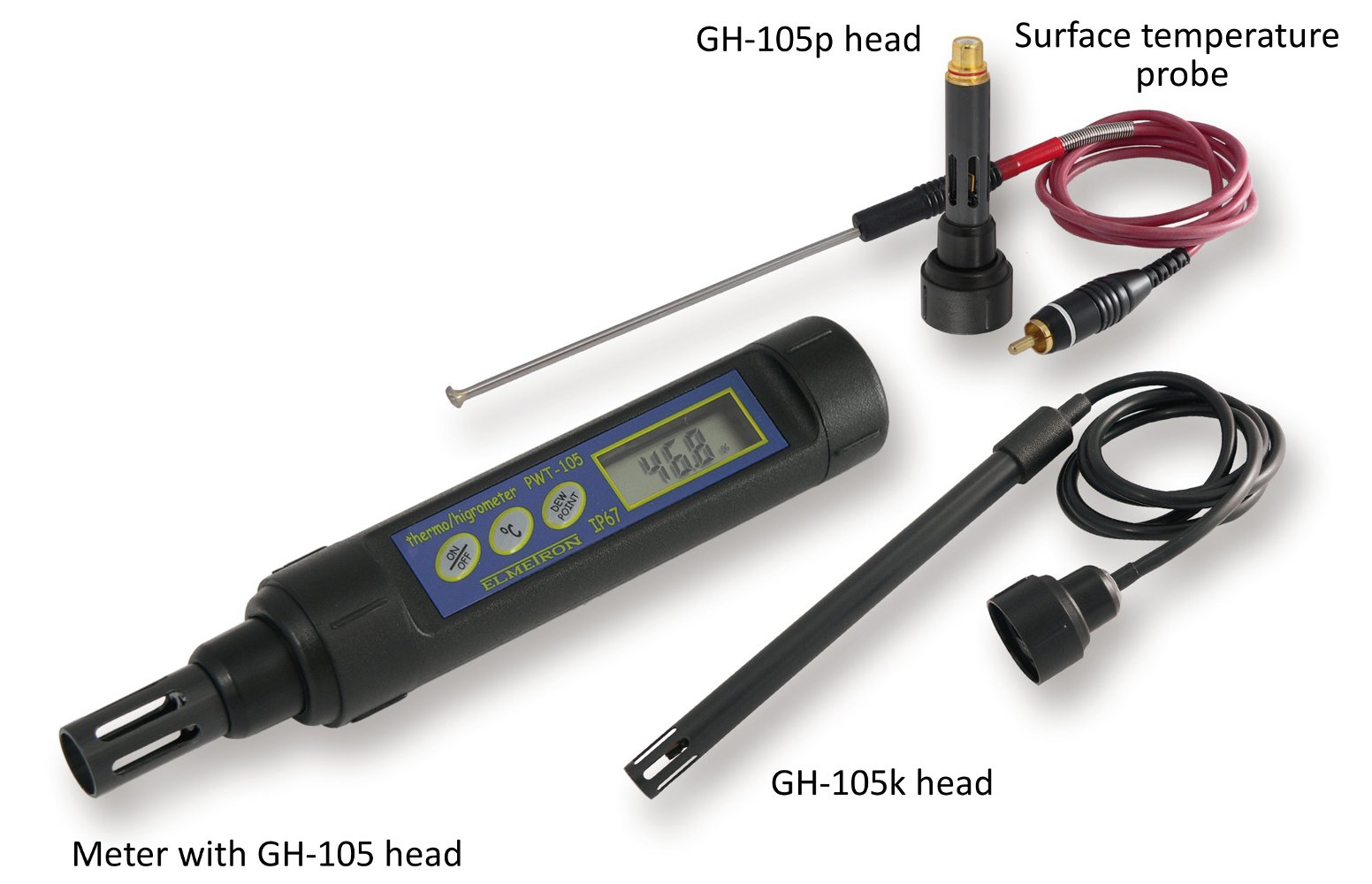

- It is possible to choose head with the following humidity sensors: GH-105 with a humidity sensor, without cable, GH-105k with a humidity sensor and a cable, GH-105p with a humidity sensor and connector for a surface temperature probe added – comparing the surface temperature with the dew point enables to decide whether painting on the surface in existing conditions is advisable.
- Automatic switch off function protects the batteries against discharging.
- Waterproof housing - IP-67.
- 24 months of warranty for the meter.
- The meter is factory calibrated.
| Function | Humidity | Temperature |
|---|---|---|
| Range | 0 ÷ 100 RH* | -40 ÷ 70 °C |
| Resolution | 0.1 RH | 0.1 °C |
| Accuracy (±1 digit) |
0 ÷ 90 RH ±3 % ** beyond this range ±4 % ** |
±0.8 °C** |
| Reaction time 90 | < 10 s | < 8 s |
| Hysteresis | < 1 % RH | - |
| Long-term sensor drift | 0.5 % RH / year | - |
| Surface temp. measuring range | -50.0 ÷ 100 °C | |
| Dew point temperature range | -199.9 ÷ 70 °C | |
| Power | batteries 3 x LR44 | |
| Weight | 70 g | |
| Dimensions (mm) | L = 152, φ = 26 | |
| * | Condensation of water on the sensor requires drying, wet sensor has wrong indications. |
| ** | The accuracy with the temperature sensor. |
