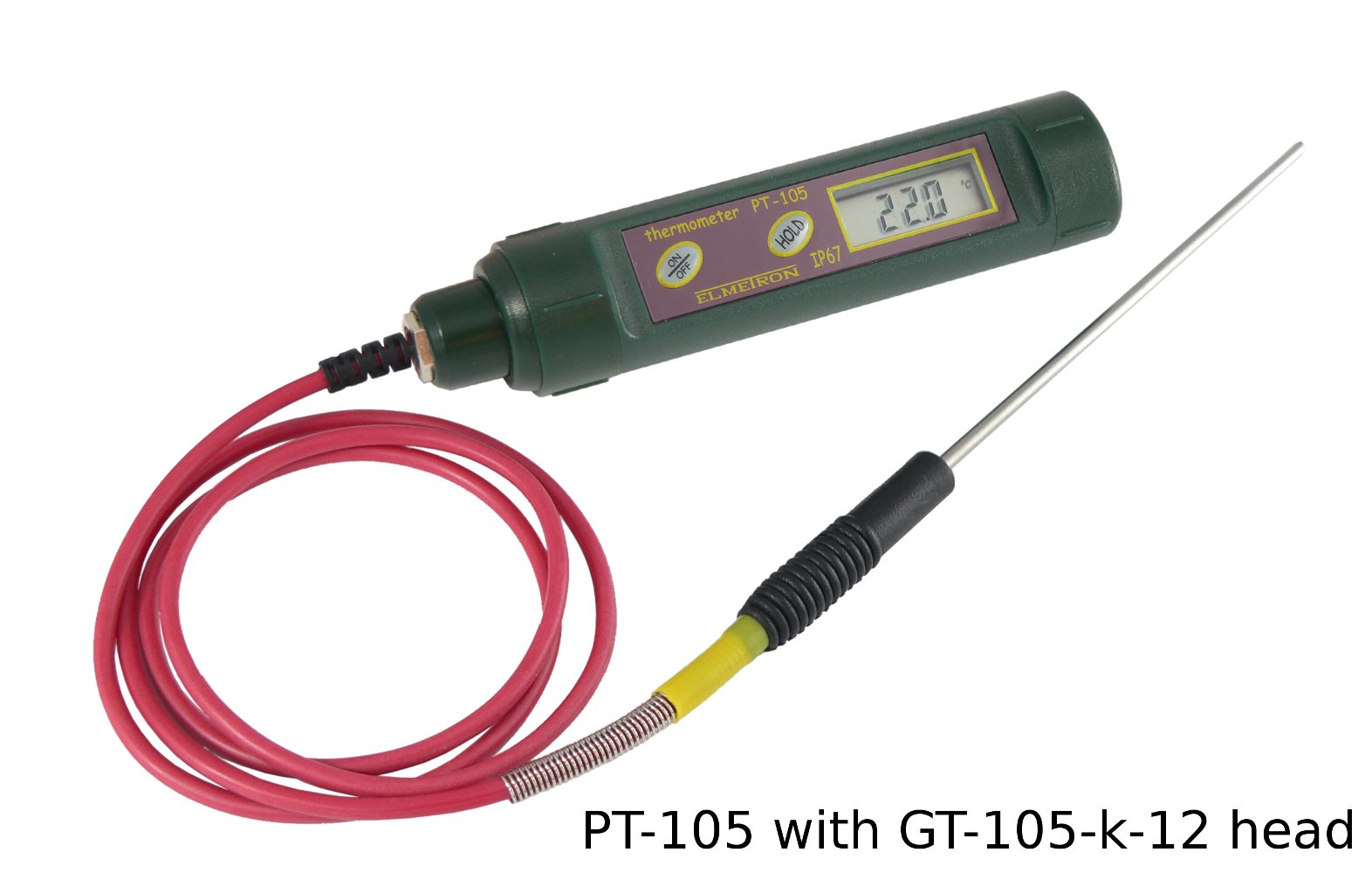

WATERPROOF THERMOMETER PT-105
Pocket size thermometer enables temperature measurements with use of probes with or without cable. Depending on the requirements it is possible to choose from two kinds of probes with lower (±1,0 °C) or higher (±0.3 °C) accuracy.
Characteristic features:
- Switching the probes doesn’t require calibration – the probe’s electronic calibration data is stored in the head.
- The probes are made of OH18N9 stainless steel pipe with 3 mm diameter.
- The end of the probe may be flat or sharp.
- The sharp-ended probes may be additionally equipped with a special handle for beating into harder substances.
- Probes are equipped with silicon cables or silicon with steel plaiting cables.
- Fully waterproof housing (IP-67) prevents the meter from flooding.
- Standard handle made of polyamide with 45 mm length and temperature resistance up to 200 °C.
- Auto off function protects the batteries against discharging.
- Battery powered (3 x LR44).
- Warranty 24 months.
- Its possible to order probes with different length of the pipe.
TECHNICAL DATA
|
Measuring range depends
on the kind of probe |
Probe without cable: lenght 3 cm -70 ÷ 150.0 °C, lenght 12 cm up to 200 °C Probe with cable: -70 ÷ 400.0 °C |
||
|---|---|---|---|
| Resolution |
-70.0 ÷ 199.9°C: 0.1°C, above 199.9°C: 1°C |
||
| Accuracy* | Range | Pt-1000B | Pt-1000S |
|
-70 ÷ 0.0 °C 0.0 ÷ 99.9 °C 100 ÷ 199.9 °C 200 ÷ 400 °C |
±0.9 °C ±1.0 °C ±1.5 °C ±3.0 °C |
±0.9 °C ±0.3 °C ±1.5 °C ±3.0 °C |
|
| Weight / Dimensions | 60 g / L = 160mm; φ = 26 mm | ||
| Power | batteries 3 x 1,5 V LR44 | ||
| * | Recommended standard probes with a Pt-1000B or accurate probes with a Pt-1000S resistor. |
| GT-105-3 | standard with a Pt-1000B probe, 3 cm pipe, without cable. |
|---|---|
| GT-105s-3 | accurate with a Pt-1000S probe , 3 cm pipe, without cable. |
| GT-105-8 | standard with a Pt-1000B probe, 8 cm pipe with a sharp end, without cable. |
| GT-105s-8 | accurate with a Pt-1000S probe, 8 cm pipe with a sharp end, without cable. |
| GT-105-12 | standard with a Pt-1000B probe, 12 cm pipe, without cable. |
| GT-105s-12 | accurate, with a Pt-1000S probe, 12 cm pipe, without cable . |
| GT-105k-12 | standard with a Pt-1000B probe, 12 cm pipe, 1 m silicone cable. |
| GT-105sk-12 | accurate with a Pt-1000S probe, 12 cm pipe, 1 m silicone cable . |
| GT-105o-12 | standard with a Pt-1000B probe, 12 cm pipe, 1 m silicone cable in steel plaiting |
| GT-105so-12 | accurate with a Pt-1000S probe, 12 cm pipe, 1 m silicone cable in steel plaiting. |
| GT-105r-8 | standard with a Pt-1000B probe, 1 m cable, 8 cm pipe with a sharp end T handle. |
| GT-105sr-8 | accurate with a Pt-1000S probe, 1 m cable, 8 cm pipe with a sharp end, T handle. |
| GT-105or-8 | standard, 8 cm pipe with a sharp end, 1 m cable in steel plaiting, T handle. |
| GT-105sor-8 | accurate, 8 cm pipe with a sharp end, 1 m cable, steel plaiting, T handle. |
