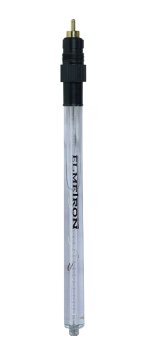

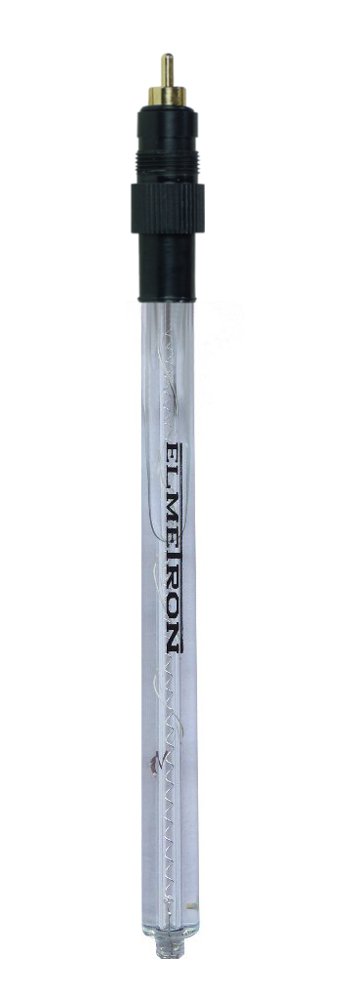

ORP / REDOX ELECTRODE ERS-2B
ERS-2B electrode is designed for measuring oxidation-reduction potential (ORP, redox) in water solutions.
This electrode is designed for continuous measurements.
In the upper part it has a thread for screwing it into the immersion heads.
It includes measuring half-cell in a shape of a spiral, platinum wire at the electrode's end and a silver/chloride reference half-cell with a constant potential.
The electrode is equipped with a ceramic electrolytical junction.
Its construction enables easy cleaning of the platinum electrode.
The ERS-2 electrode is typically used in: controlling the processes of the oxidation-reduction reactions in swimming pools,
in the process of chemical and biological purification of industrial and domestic waste water, controlling the fermentation processes, etc.
Technical Data
| Measuring range | ±2000 mV |
|---|---|
| Temperature range | 5 ÷ 80 °C |
| Measuring half-cell | platinum |
| Reference solution | 3.5 M KCl |
| Electrolyte junction | ceramic, single |
| Body diameter | 12.0 ±0.5 mm |
| Body length (without socket) | 140 mm |
| Minimal immersion depth | 30 mm |
| Body material | glass |
| Connector | RCA with M16 thread |
