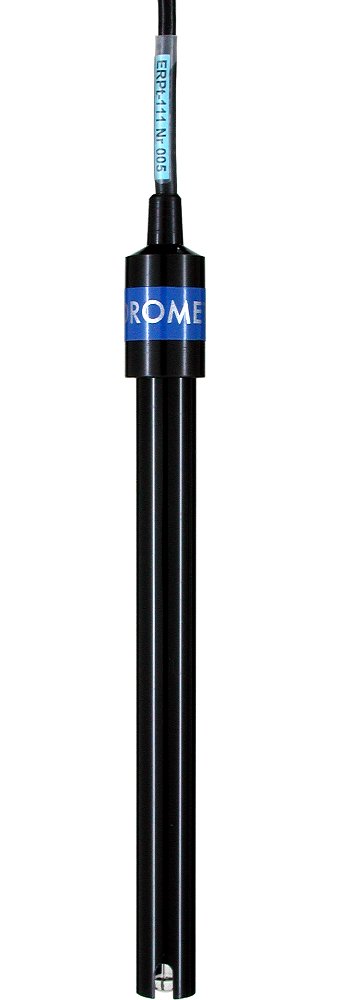

COMBINATION REDOX ELECTRODE ERPt-111

Zoom

Combination ORP (redox, mV) electrode ERPt-111 is designed for measurements in water solutions.
The electrode consists of measuring and reference half-cells. The measuring part is a platinum ring placed at the end of the electrode, which potential depends on the oxidation - reduction balance in the measured solution.
The reference part is Ag/AgCl in KCl solution saturated with silver chloride. A contact with the sample is ensured by a fiber diaphragm (junction).
The electrode is prepared for cooperation with pH meters with an option of mV measurement and with BNC connector.
It may be used both during the laboratory and field measurements. The electrolyte used in the electrode is in a gel form, what slows down its outflow. The electrode is not refillable what makes its using and conservation easier.
The ERPt-111 electrode is equipped with mechanically and chemically resistant epoxy body, it successfully protects the measuring part of the electrode.
The typical fields in which the electrode is used are: controlling of the redox potential in a chemical or biological treatment of the municipal sewage and industrial waste water, measurements of the surface water quality, controlling of the fermentation processes etc. The ERPt-111 may also be used in laboratories as an end point indicator in the titration process.
