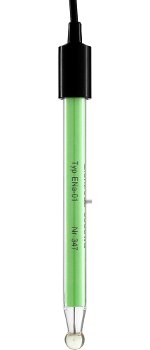

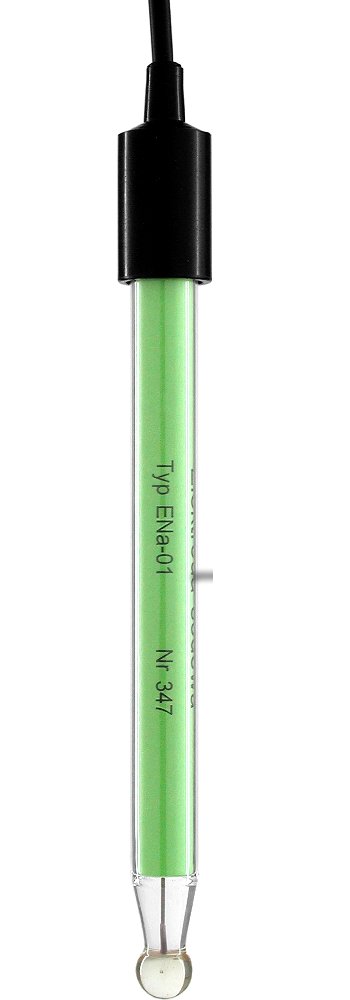

THE MEASURING SODIUM ELECTRODE ENa-01


The glass sodium electrode ENa-01 is a measuring half cell designed for measurements of activity or concentration of the sodium ions in aqueous solutions and in many water-organic mixtures.
The measurements may be done both in laboratory and in industrial conditions.
The ENa-01 electrode can't be used separately - it has to be used with a reference electrode with its potential undependant from the measured solution composition. For the laboratory measurements the RL-100 reference electrode is advised, with the internal chamber filled with 1.0 M ammonium nitrate solution.
The sodium and reference electrode after connecting with an ion meter or a pH / mV meter create a measurink link which enables sodium ions concentration measurements. Using separate electrodes requires using a meter with 2 separate connectors - BNC for measuring electrode and "banana" for the reference one, or using a special adapter enabling connecting both electrodes to 1 BNC connector.
The electrode has a glass body and a round glass ion selective membrane.
To eliminate additional interferences a low noise cable is used.
The size of the electrode enables its installation in typical flow or immersion heads.
Measurements in the laboratory may be done by a direct measurement or using any of the techniques based on the growth of sodium ion concentration in the sample. For buffering of the measured solutions, to eliminate the interfering influence of the hydrogen ions, an ammonia or amines should be used.
The typical applications of the sodium electrode are measurements in boiler water, distilled water, industrial sewage, all kinds of water in biologic samples (ex. blood), food products and soil samples etc.



Technical data
Measuring range for stationary measurements 10-6 ÷ 1 mol/l Na+-
0.023 ÷ 23000 ppm Na+-
Measuring range formeasurements in a flow 10-7 ÷ 1 mol/l Na+-
10-3 ÷ 23000 ppm Na+
Temperature range 0 ÷ 80 °C
pH acceptable range 8 ÷ 12 pH
Characteristisc slope 57 ±2 mV/pNa+
Response time 30 to 60 s
Membrane resistance (in 20°C) 100 to 300 MΩ
Selectivity coefficient Ag+= 100
H+ = 30
K+ = 1O-2
NH4+ = 10 -4
Membrane shape round
Body diameter 12 mm ±0.5 mm
Body length (without cap) 120 mm ±5 mm
Minimal immersion depth 15 mm
Maximal immersion depth 115 mm
Body material glass
Cap material polypropylene
Cable length about 1 m
Connector BNC-50
