LABORATORY CONDUCTIVITY / SALINITY METER CC-511

Technical data

Data sheet as pdf

zoom

The most important features

Simple laboratory meter.
Measures conductivity, salinity, TDS and temperature.
The display enables simultaneous readout of the measured function and temperature.
Conductivity calibration in 1 point by entering the constant K or in standard solution.
Constant α coefficient (2%/°C).
Memory of 50 results
No PC connection.

Detailed description

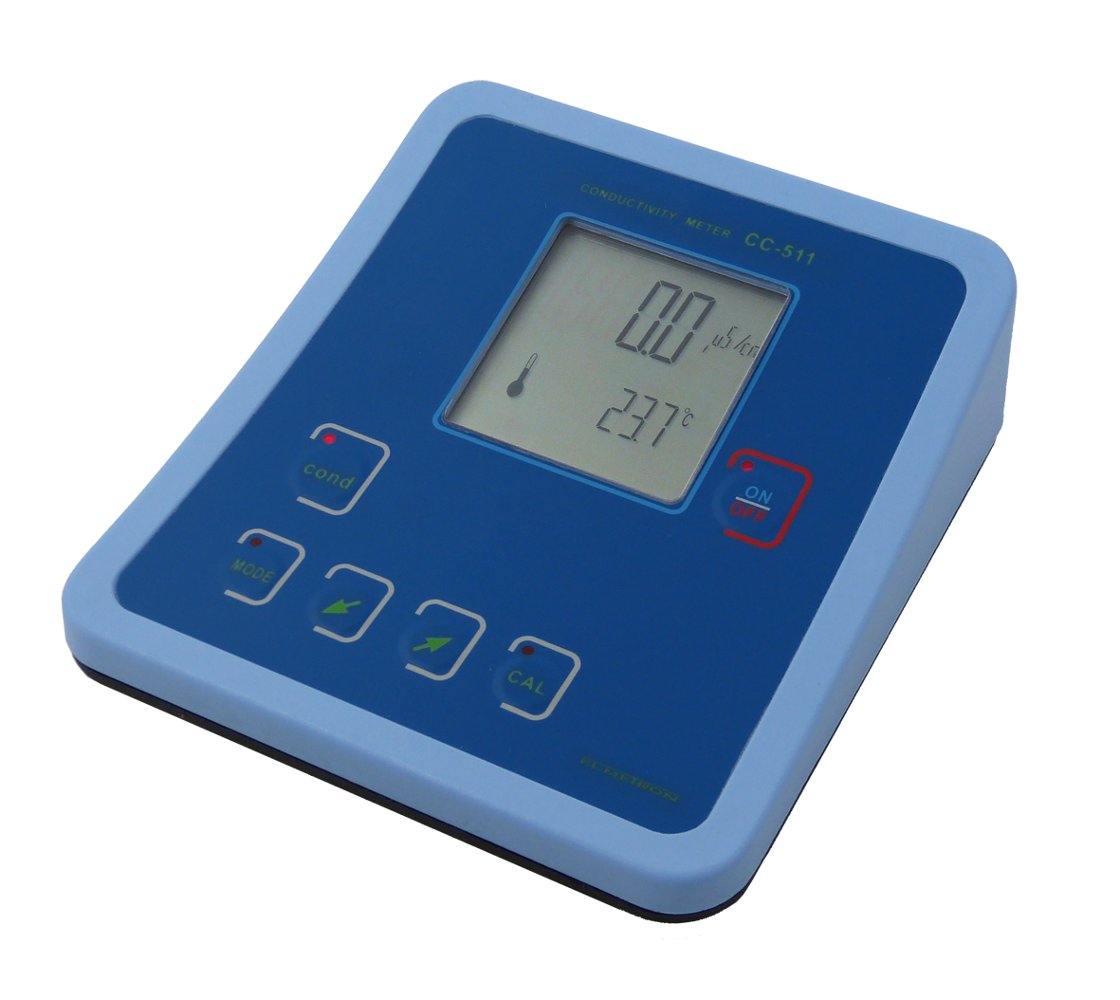

CC-511 is a simple laboratory measuring device, which measures conductivity, salinity, TDS and temperature.

Characteristic Features:

Large, easy to read display enables simultaneous readout of the measured function and temperature.
Measures conductivity in distilled water and other liquids up to 1000 mS/cm.
5 sub ranges switched automatically (autorange).
Salinity measurement converted to NaCl or KCl.
Converts conductivity into salinity according to real characteristic and not a constant coefficient.
Determines estimated value of the total dissolved solids (TDS).
Calibration, by entering the constant K of the cell in range 0.010 ÷ 19.999 cm^-1 or with use of a standard solution.
Automatic temperature compensation.
Constant α coefficient (temperature coefficient) 2 %/°C.
Possibility of entering the reference temperature value.
Memory of 50 results
IP64 ingress protection.
Warranty for the meter: 24 months.

The set includes CT2B-121 temperature probe with Pt-1000B resistor and accurate ECF-1 conductivity cell. Range: 0 ÷ 400 mS/cm is sufficient for conductivity measurements in majority of liquids with maximal concentration, ex.: aqueous soil extracts, water with grease oil or fat. Metal electrodes are easy to clean. Plastic housing protects from mechanical damage.

TECHNICAL DATA

Function	Conductivity	Salinity	Temperature
Range	0 ÷ 1000.0 mS/cm, autorange - 5 subranges	NaCl 0 ÷ 250 g/l KCl 0 ÷ 200 g/l	-50.0 ÷ 199.9 °C
Accuracy (± 1 digit)	±0.25%*	±2%*	±0.1°C**
Temperature compensation	-5 ÷ 70 °C	-5 ÷ 70 °C	-
α coefficient	constant 2%/°C	constant 2%/°C	-
K constant	0.010 ÷ 1,999 cm^-1	-	-
Temperature sensor	Pt-1000B
Power supply	12 V / 100 mA power adapter
Dimensions (mm)	L = 200; W = 180; H = 20/50
Weight	620 g

*	The accuracy of the meter only.
**	The accuracy of the meter only. The total error includes the meters and probe's accuracy. In the range 0 ÷100 °C the acceptable error of the probe with Pt-1000B resistor: ±0.8°C , with Pt-1000A resistor: ±0.35°C.
