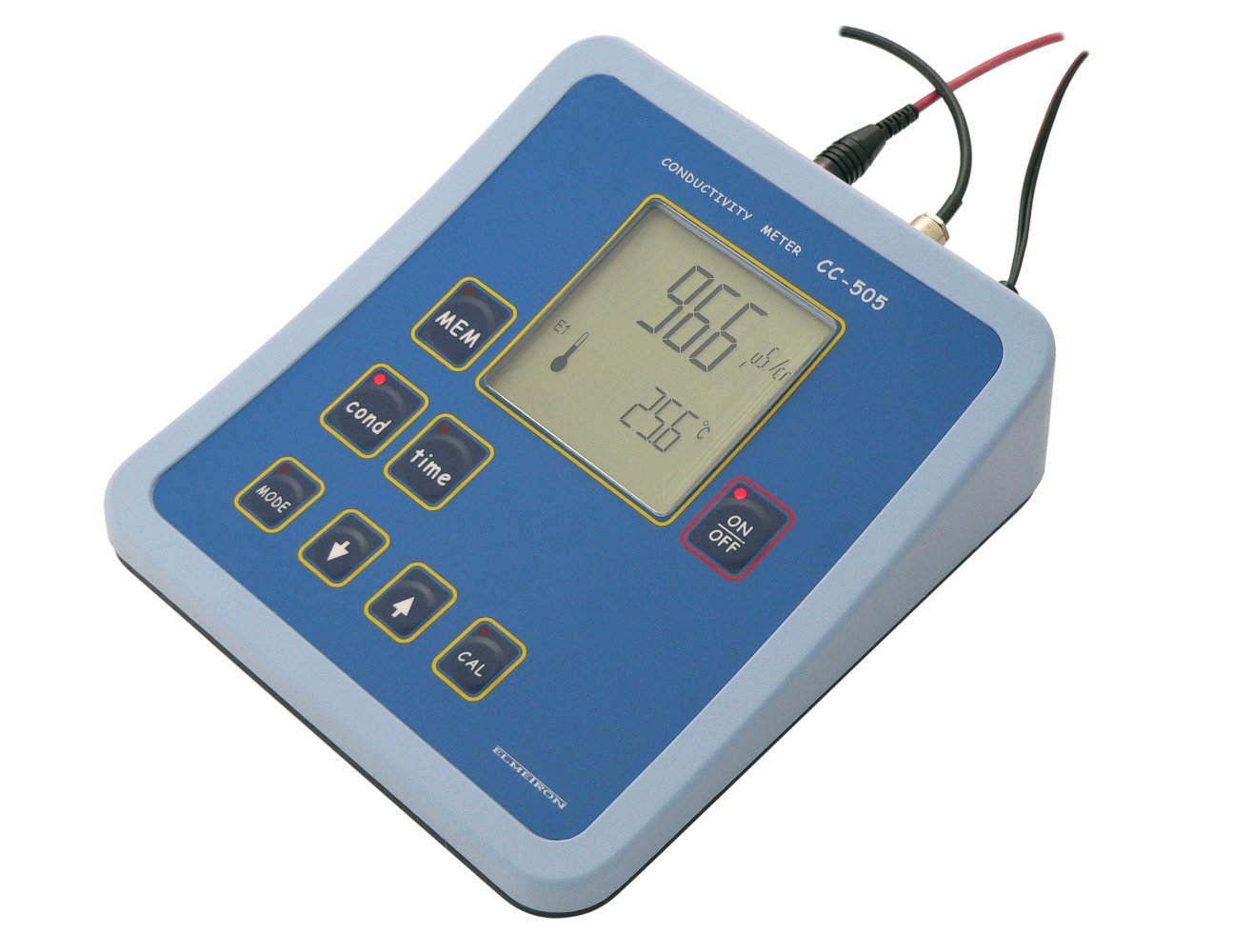

LABORATORY CONDUCTIVITY / SALINITY / TDS METER CC-505
The most important features
- Very high accuracy meter for laboratory use.
- Measures conductivity, salinity, TDS, resistivity and temperature.
- Backlit display enables observation of the chosen function and temperature.
- Calibration in 1 to 5 points.
- Wide measuring range enables measurements of all types of liquids.
- Possibility of entering the α coefficient in a wide range.
- In the conductivity measurement function automatic selection of the temperature coefficient for natural and ultra pure water.
- Memory of 4 000 results.
- USB output.
- Meets the GLP requirements.
Detailed description
Measures conductivity, salinity, resistivity, TDS and temperature. Very wide conductivity measuring range enables measurements in ultra pure water as well as in salines.
Characteristic Features:
- The meter is equipped with a large, easy-to-read backlight LCD with brightness control.
- Enables measurements in ultra pure water as well as saline water.
- The most recent version of this model has been updated and has more additional features which facilitate usage and increase accuracy.
- ”HOLD” function to freeze the result on the display.
- Signalisation of the result stabilisation - with a ”READY” symbol and a sound.
- Possibility of sending a calibration report to a PC - up to 10 last calibrations.
- 6 sub-ranges switched automatically.
- Calibration by entering the constant K of the cell in the range 0.010 ÷ 19.999 cm-1 or in standard solution in 1 to 5 points.
- Ability to store constants K of three cells, which cover the whole conductivity range.
- Wide range of α coefficient chosen depending on the kind of measured solution.
- Possibility of changing the reference temperature.
- Automatic or manual temperature compensation.
- Converting conductivity into salinity, in NaCl or KCl, based on the real characteristics instead of a constant coefficient, what greatly increases the accuracy.
- Possibility to determine the TDS by entering the TDS coefficient in the range 0.2 to 1.0.
- In case of measurements of natural water with conductivity from 60 µS/cm to 1 mS/cm the meter enables using non-linear temperature compensation. The parameters of this type of water are determined by the EN27888:1999 norm and concern surface water, deep water and well water. This solution lowers the measurement error.
- The measurement accuracy of the ultra pure water with temperature compensation has been improved by automatic adjustment of the α coefficient depending on the kind of trace contamination and temperature.
- Internal clock with date.
- Internal datalogger enables storing up to 4000 measurements taken in series or singly with temperature, time and date.
- Storing the date of next calibration and reminding it, in the right moment, to the user.
- Non-volatile memory of the stored results and calibration data.
- USB output.
- Change of the date protected by a password
- The data transmission software enables printout of the data in a form protected against any changes.
- The meter meets the GLP requirements.
- 24 months of warranty for the meter.
- IP64 ingress protection.
- Software for data transmission and collection delivered in the set.
The set includes CT2B-121 temperature probe with Pt-1000B resistor and accurate ECF-1 conductivity cell. Range: 0 ÷ 400 mS/cm is sufficient for conductivity measurements in majority of liquids with maximal concentration, ex.: aqueous soil extracts, water with grease, oil or fat. Metal electrodes are easy to clean. Plastic housing protects from mechanical damage.
TECHNICAL DATA
Function | Conductivity | Salinity | Resistivity | Temperature |
---|---|---|---|---|
Range |
0 ÷ 1999.9 mS/cm autorange - 6 subranges |
NaCl 0 ÷ 296 g/l KCl 0 ÷ 239 g/l |
0.500Ωcm ÷ 200MΩcm | -50.0 ÷ 199.9 °C |
Accuracy (± 1 digit) |
up to 19.999 mS/cm ±0.1 %*, above 20,00 mS/cm: ±0.25 %* |
±2.00 %* |
± 2% of measured value* |
±0.1 °C** |
Temp. compensation | -5 ÷ 70°C | -5 ÷ 70°C | -5 ÷ 70°C | - |
α coefficient | 0.00 ÷ 10.00 %/°C | 0.00 ÷ 10.00 %/°C | 0.00 ÷ 10.00 %/°C | - |
Power supply | 12 V / 100 mA power adapter | |||
Dimensions (mm) | L = 200, W = 180, H = 20/50 | |||
Weight | 550 g |
* | The accuracy of the meter only. |
** | The accuracy of the meter only. The total error includes the meters and probe's accuracy. In the range 0 ÷ 100 °C the acceptable error of the probe with Pt-1000B resistor: ±0.8°C , with Pt-1000A resistor: ±0.35°C. |
