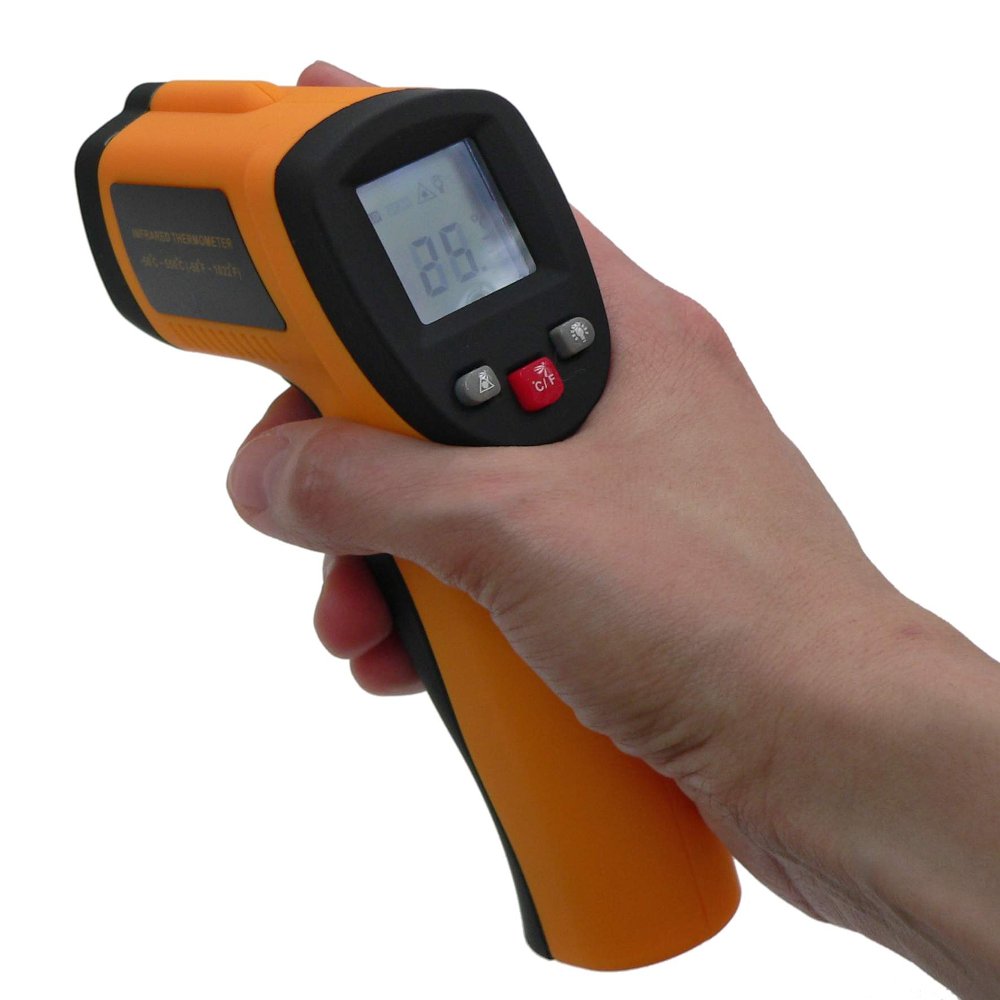

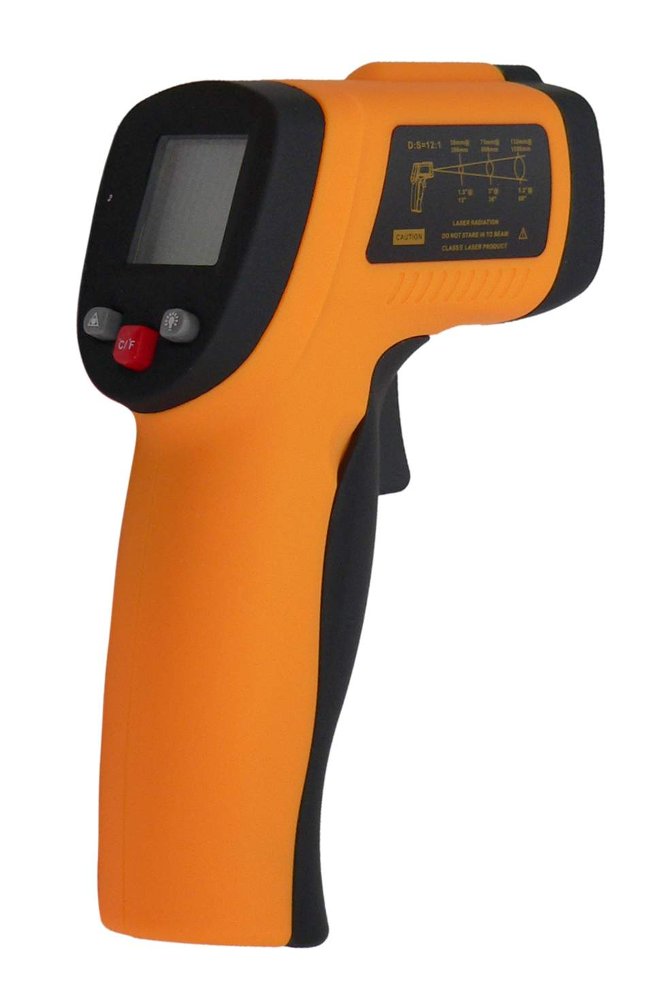

PYROMETER – INFRARED THERMOMETER AMF-009
Pyrometer AMF-009 is designed for fast, non-contact temperature measurements of object’s surface and for measurements of hazardous or hard to reach objects. The meter may be used: in food industry, automotive industry, chemical industry, refrigeration, for controlling of air conditioning and heating systems, for controlling work conditions and temperature monitoring in technological processes. It may also be used in plant and animal farming, laboratories, for temperature measurements of moving objects, hard to reach objects or hazardous objects like high voltage electric objects and for fire hazard detecting etc.
Characteristic features:
- Auto Hold function freezes the actual result on the display;
- Constant emissivity coefficient (0.95);
- Distance to spot ratio 12:1
- Backlight of the display, with possibility of switching it on and off;
- Auto power off function to save the batteries;
- Laser aiming;
- Possibility of choosing the measurement in °C or °F;
- Warranty: 12 months.
TECHNICAL DATA
| Temperature range | -50 ÷ 550 °C |
|---|---|
| Accuracy |
0 ÷ 550 °C ±1,5 °C or ±1,5 % °F -50 ÷ 0 °C ±3 °C* whichever is greater |
| Resolution | 0.1 °C or 0.1 °F |
| Repeatability | 1 % or 1 °C |
| Response time | 500 msec., 95% response |
| Spectral response | 8 μm ÷ 14 μm |
| Emissivity | 0.95 pre-set value |
| Distance to spot ratio | D:S = 12 : 1 (75 mm x 0.9m) |
| Operating temp | 0 ÷ 40 °C |
| Operating humidity | 10 % ÷ 95 % RH |
| Storage temperature | -20 ÷ 60 °C |
| Power supply | Battery 9 V |
|
Typical battery life |
Non-laser mode: 22 h Laser mode: 12 h |
| Weight | 148 g with battery |
| Dimensions (mm) | 153 x 101 x 43 |
